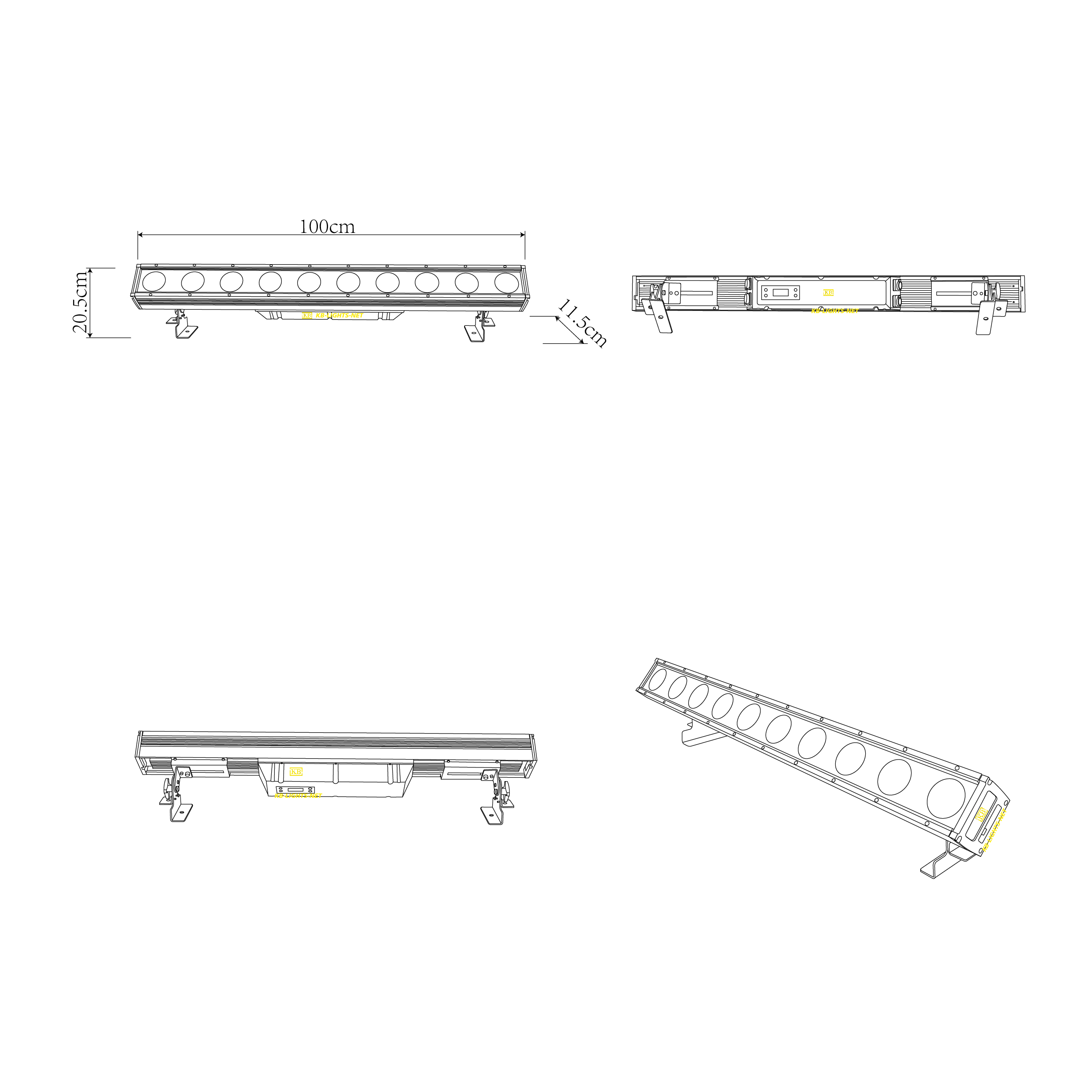

IP BLINDER LINE 10
KB-LEDWP-BLL10
4
LED Engine comprised of 10‚ 50-Watt R+A+WW LEDs
Individual pixel control and built-in color macro effects
Tungsten emulation during dimming
Hidden‚ accessories-free interlocking system for combining units
IP67 rated
Individual pixel control and built-in color macro effects
Tungsten emulation during dimming
Hidden‚ accessories-free interlocking system for combining units
IP67 rated
Quantity

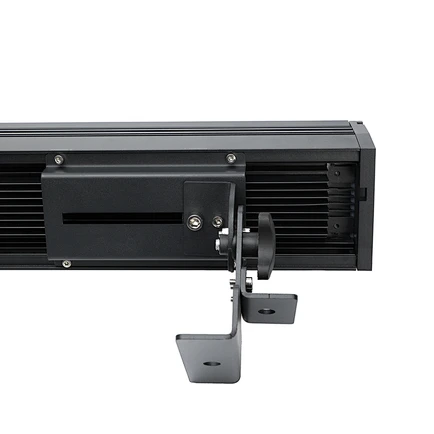

IP65 COB Line Bar Pixel Light
This light is a professional IP65 COB Line Bar Pixel Light designed for concerts, festivals, touring productionsand
outdoor stage events. Its COB LED source and pixel-controlled design create dynamic linear effects, colorful patterns
and powerful visual accents, making it an ideal solution for creative stage and entertainment lighting.
Technical Specifications
Light source: 10 x 50W COB (R+A+WW)
Lamp life expected service life: 20‚000 hours
Beam angle: 15°/26°/36° optional
control and program
4 touch buttons
Control panel: LCD display
Control mode: DMX512‚ RDM‚ Auto
DMX channel modes: 3
Control channel: 7/10/17CH optional
Software upgrade: Update software via DMX connection
Electrical and Connector
Adaptive power source
Input voltage range: 100-240V~ 50/60Hz
Rated power: 550W
Power input/output: Power connector input/output
Signal input/output: three-pin XLR socket
Lamp life expected service life: 20‚000 hours
Beam angle: 15°/26°/36° optional
control and program
4 touch buttons
Control panel: LCD display
Control mode: DMX512‚ RDM‚ Auto
DMX channel modes: 3
Control channel: 7/10/17CH optional
Software upgrade: Update software via DMX connection
Electrical and Connector
Adaptive power source
Input voltage range: 100-240V~ 50/60Hz
Rated power: 550W
Power input/output: Power connector input/output
Signal input/output: three-pin XLR socket
N.W.:8.5KG
Material
All cast aluminum
Waterproof level
IP67
Applications
The BLL10 combines COB LED technology with pixel control to create dynamic linear lighting effects for professional stage productions. Its IP65 protection makes it suitable for outdoor concerts, festivals and touring applications.Designed for creative stage lighting and large-scale entertainment projects, the fixture provides flexible visual effects and reliable performance. OEM/ODM customization is available for professional lighting brands and rental companies.

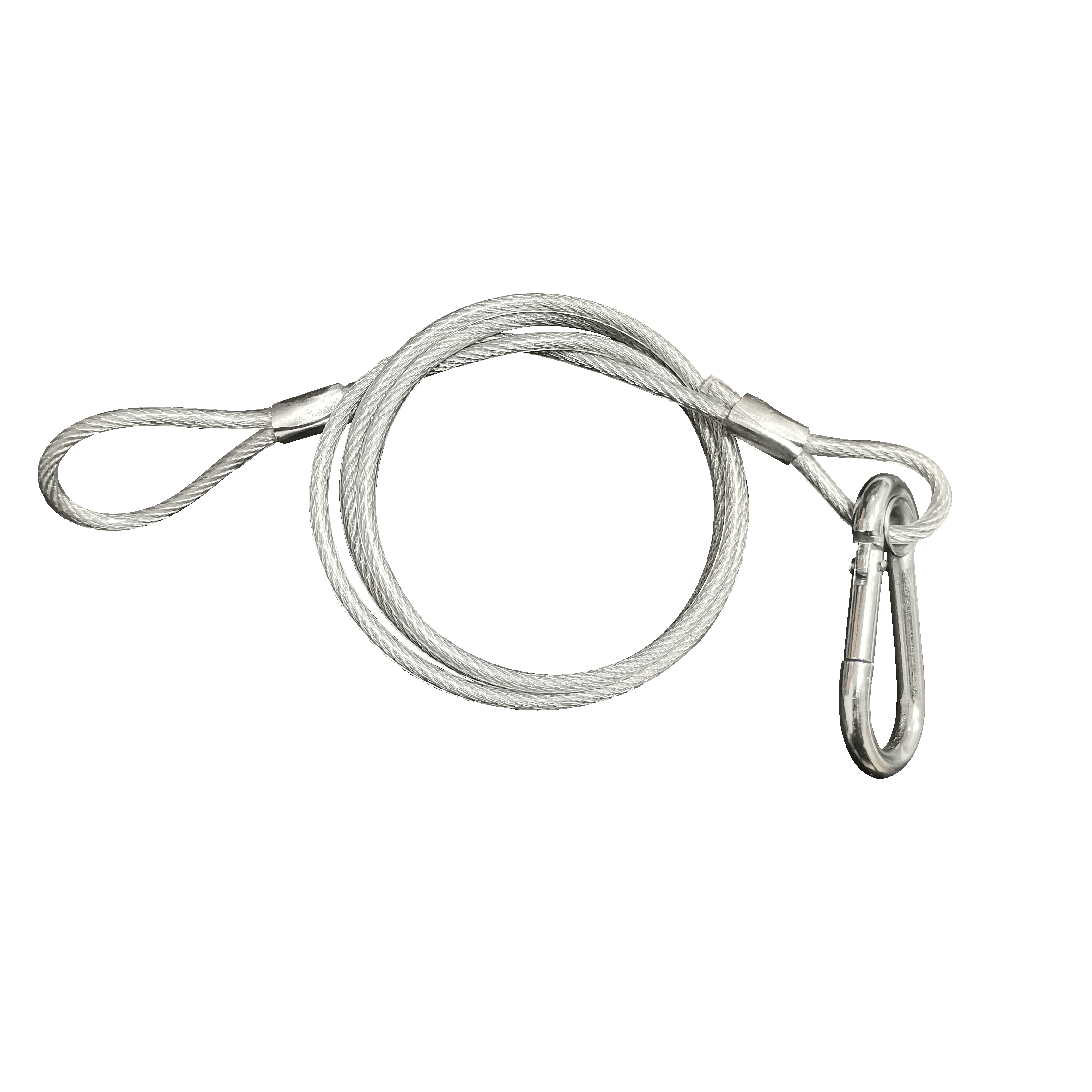

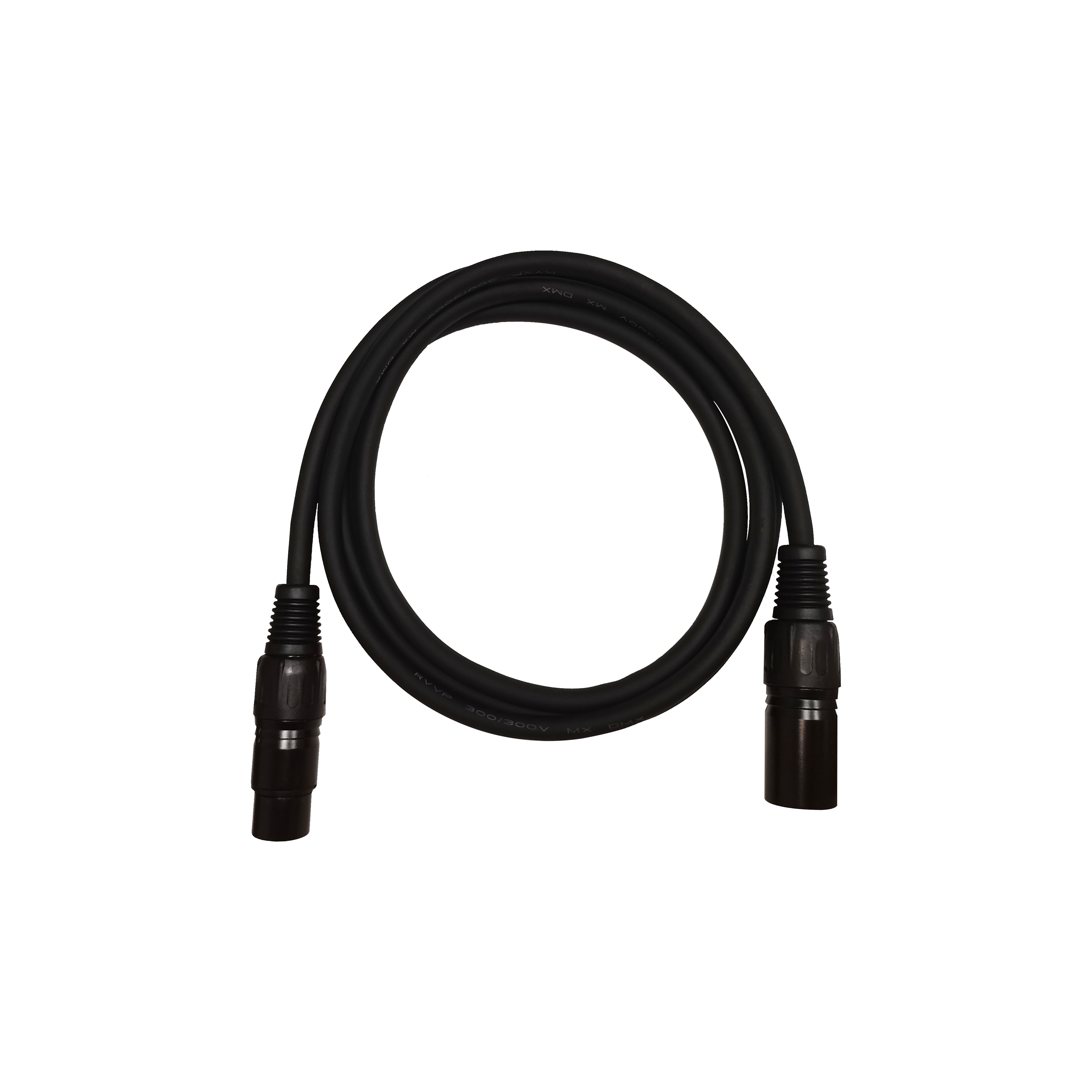

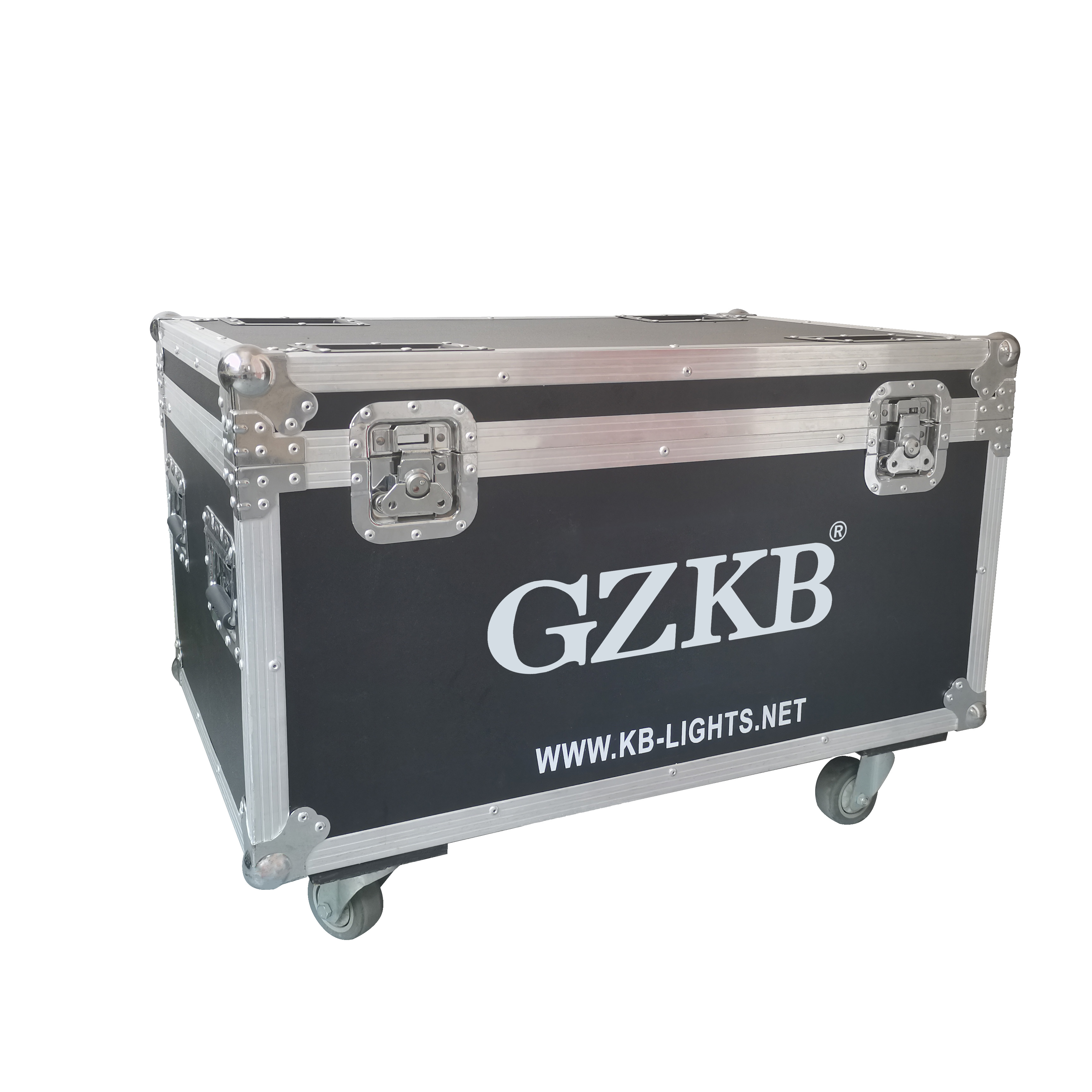

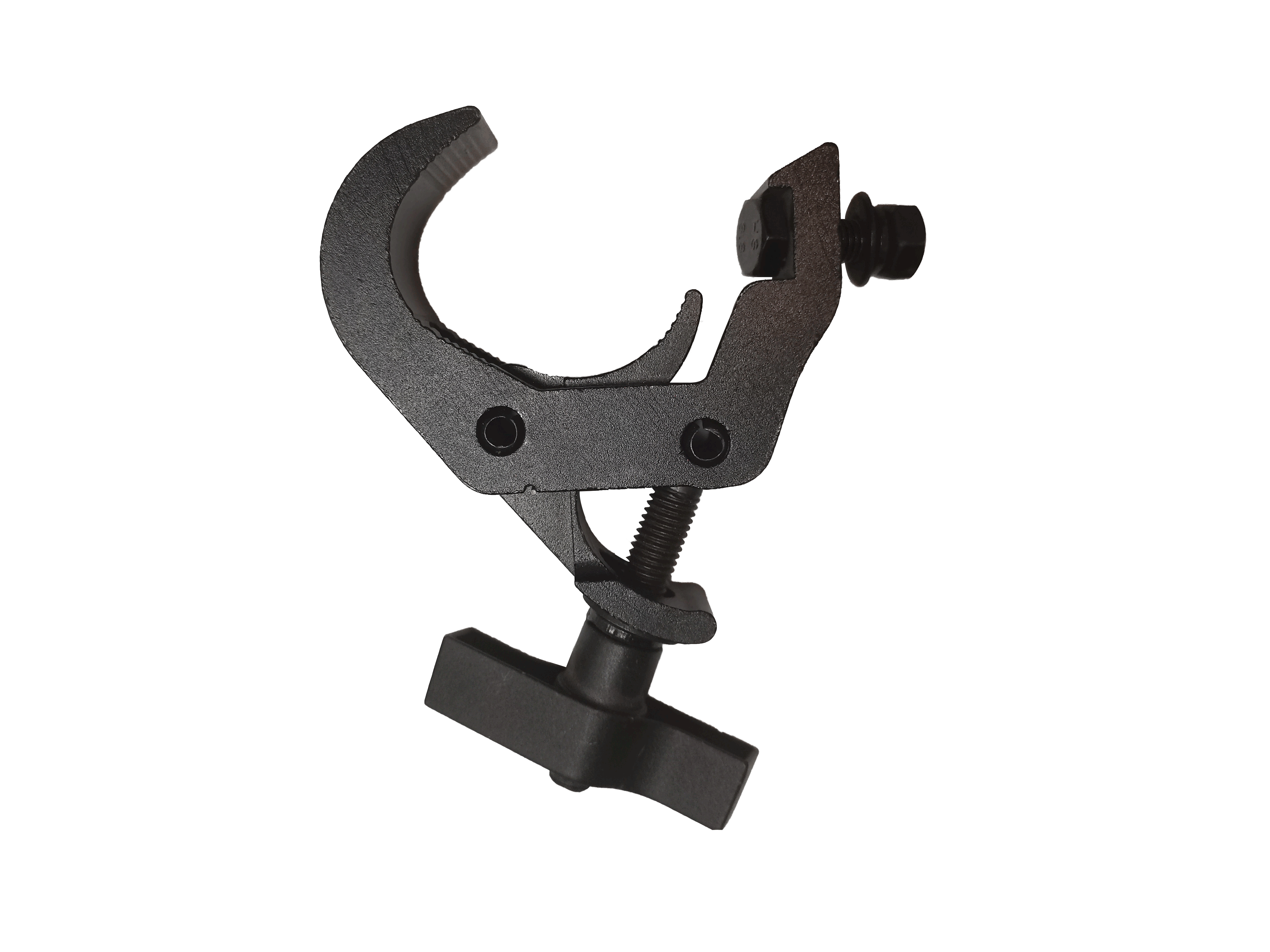

Optional Accessories
