IP strobe line bar
KB-LEDWP-ST600
4
IP Strobe bar light
672 x 0.5W RGB LED
112 x 3W CW LED
Advanced optical design for seamless effects
SMART Glass technology for DMX controllable frost effects
672 x 0.5W RGB LED
112 x 3W CW LED
Advanced optical design for seamless effects
SMART Glass technology for DMX controllable frost effects
Quantity
IP Strobe Line Bar
This IP strobe bar offers a powerful blend of performance and control, The fixture features a cool white light with a color temperature
of 6500-7500K, complemented by 112 high-intensity 3W white LEDs and 672 vibrant RGB LEDs, all contributing to a remarkable light
output.It offers 0-100% linear dimming and electronic frosting from 1-100%, allowing for precise lighting adjustments. With 16 controllable
strobe segments for the white light and 32 for the RGB, it delivers dynamic lighting effects.
IP Strobe Bar & Specifications
Light Sources:
672 x 0.5W RGB LED
112 x 3W CW LED
672 x 0.5W RGB LED
112 x 3W CW LED
Beam Angles:
RGB Beam Angle: 101°
CW Beam Angle: 108°
Field Angles:
RGB Field Angle: 149°
CW Field Angle: 152°
Optical System
Advanced optical design for seamless effects
SMART Glass technology for DMX controllable frost effects
Control
4 touch button control panel
Display: OLED display
Protocols: DMX512, RDM
DMX Protocol modes: 11
Control channels: 7/15/21/39/112/17/33/65/68/117/70
Electrical and Connectors
Input Voltage Range: 100-240VAC, 50/60Hz
Power consumption: 420W
Data In/Out: Waterproof 3-pin
Fixture Specification
Width: 1,000 mm
Depth: 150 mm
Height: 102 mm
Weight:
8.5 kg with sliding adjustable clamp
IP Strobe Bar & Describe
Our IP strobe bar is designed for professionals seeking versatility and control. With 672 high-intensity 0.5W RGB LEDs and 112 3W CW LEDs, it delivers a powerful, wide-ranging illumination. Advanced optical features, including SMART Glass technology for frost effects, and a user-friendly touch panel with OLED display, offer seamless control. Compatible with DMX512 and RDM protocols, IP strobe bar adapts to various configurations, ensuring precision in any lighting scenario. Durable and portable, it's the perfect choice for stage, studio, and event lighting needs.

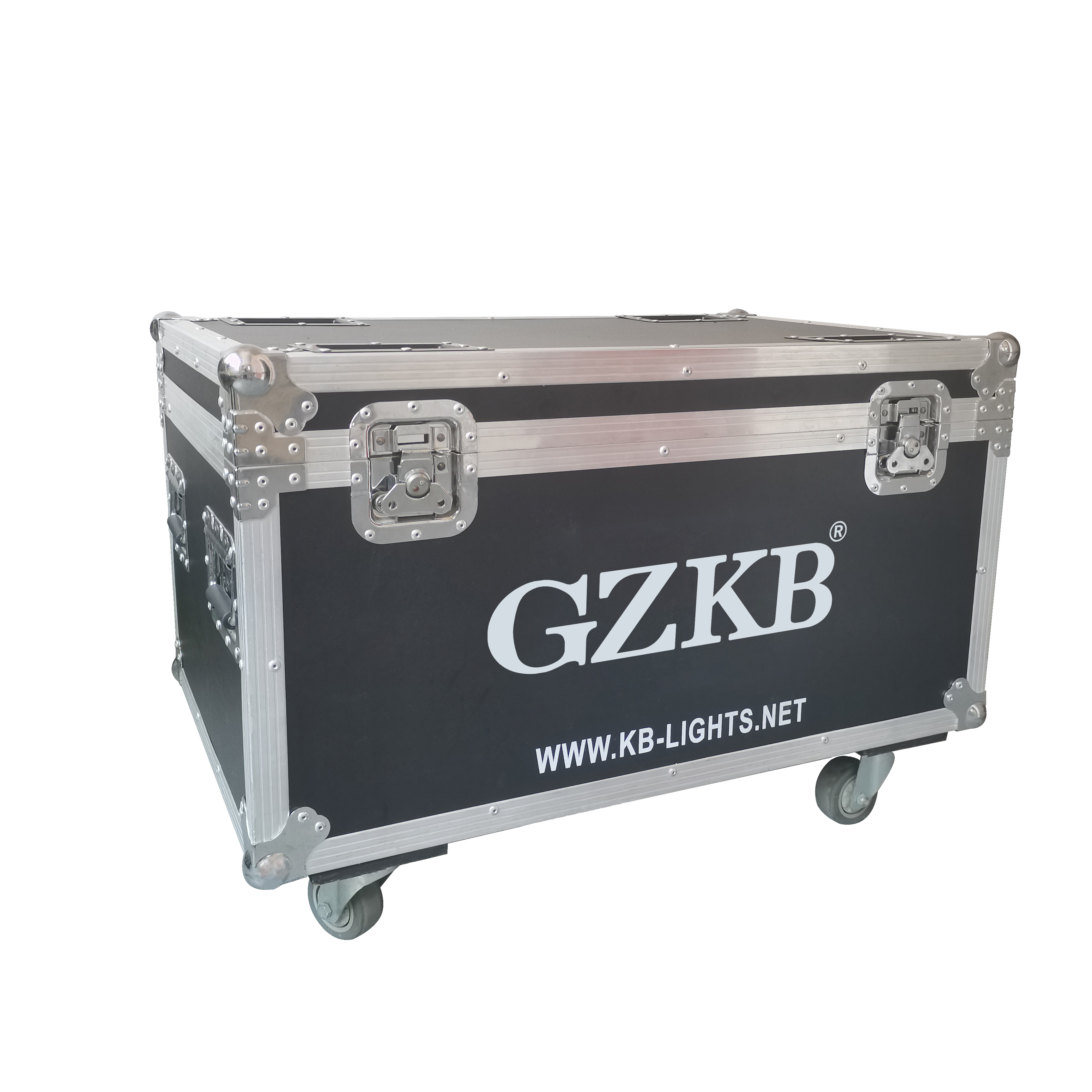

IP Strobe Bar & Optional Accessories
